Components and components location

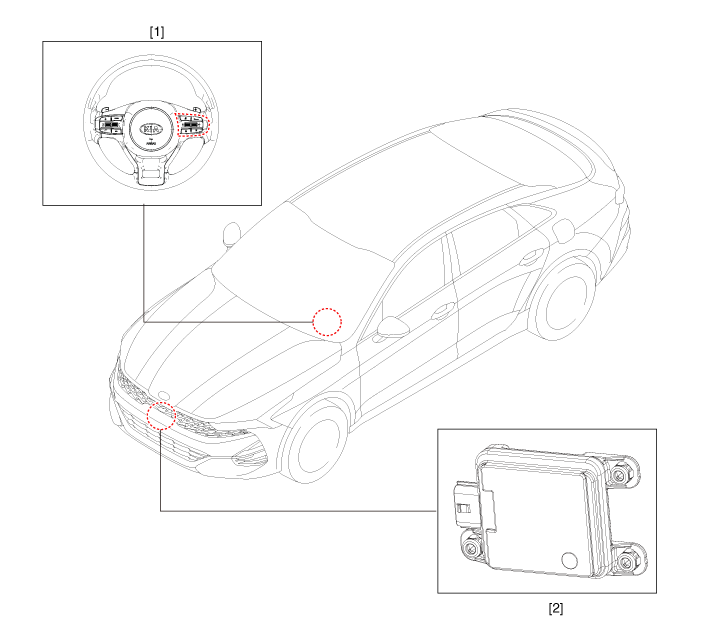

Components Location

1. Smart Cruise Control (SCC) switch
2. Front radar unit

Description and operation
Description

System Function

Forward Collision-avoidance Assist (FCA) : Detects the risk factors on the road and warn the driver and activate the emergency brake to prevent collision or reduce collision speed.

FCA-JT (Junction Turning) : Controls braking in the event of a collision risk with an approaching vehicle from opposite sides in an junction left turn.

Smart Cruise Control (SCC) : The smart cruise control system allows a driver to program the vehicle to control the speed and following distance. The SCC system detects the vehicle ahead without depressing the brake or accelerator pedal.

System Description

Forward Collision-avoidance Assist (FCA)

1.

Operation specification

Item
Sensor Fusion (Front View Camera + Front Radar)
Car
Car
Pedestrian
Cyclist
Junction
Operation speed
(Wheel speed)
Warning
10 - 180 km/h (5 - 110 mile/h)
10 - 180 km/h (5 - 110 mile/h)
10 - 85 km/h (5 - 50 mile/h)
10 - 85 km/h (5 - 50 mile/h)
10 - 30 km/h (5 - 19 mile/h)
FULL Braking
10 - 75 km/h (5 - 45 mile/h)
10 - 85 km/h (5 - 50 mile/h)
10 - 65 km/h (5 - 40 mile/h)
10 - 65 km/h (5 - 40 mile/h)
Remarks
Stationary
Moving vehicle
-
-

Warning level
Warning
Visible / Audible warning
FULL Braking
Visible / Audible warning + Engine drag + Full braking
Alarm sensitivity (User setting menu)
Normal - Late

2.

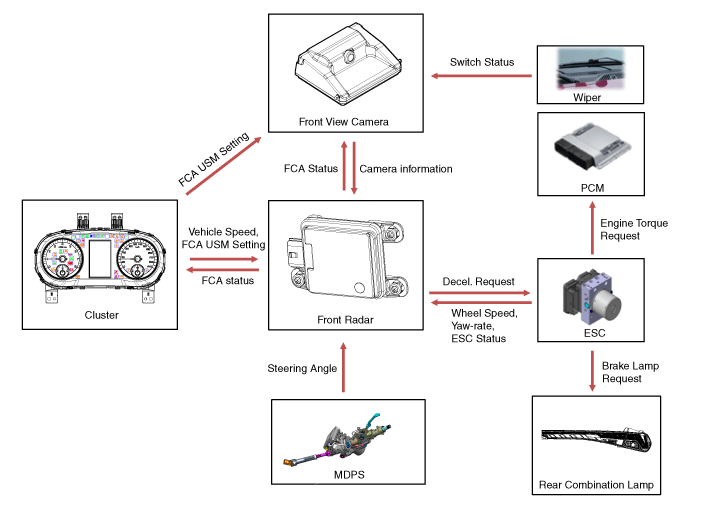

System components

3.

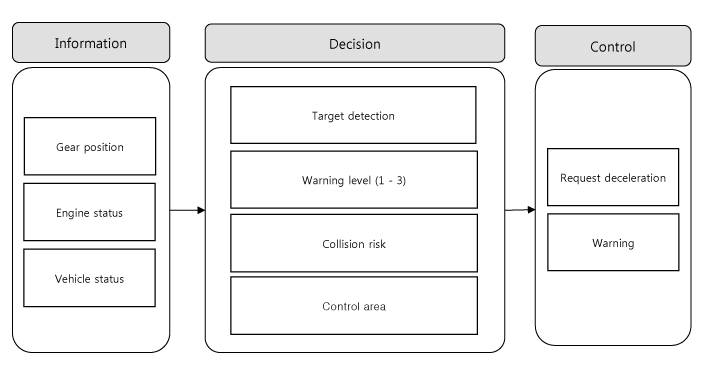

System block diagram

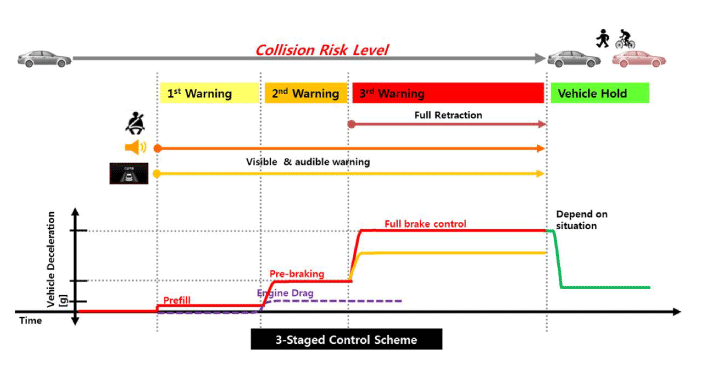

4.

System operation

Smart Cruise Control (SCC)

1.

Operation specification

Item
Specification
Max/Min speed for setting speed
30 - 180 km/h (20 - 110 mile/h)
Max/Min speed for control
0 - 190 km/h (0 - 120 mile/h)

2.

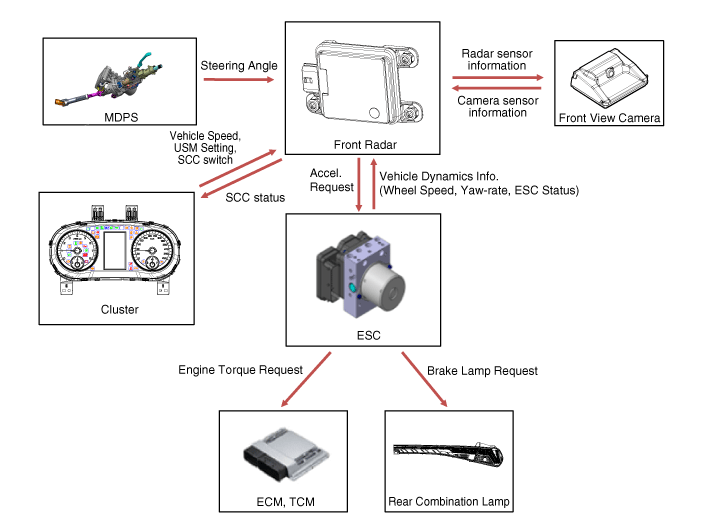

System components

3.

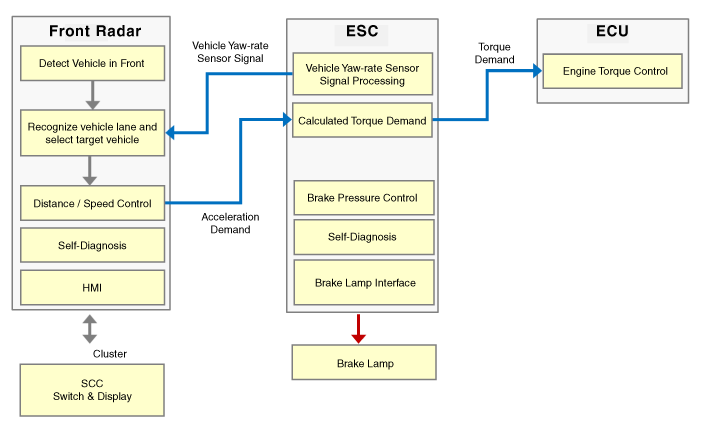

System block diagram

System Limitations

The system uses a camera mounted in the windshield and radar on the front bumper to monitor driving conditions in front of the vehicle. The system may not work properly if any situation is outside of the sensing range or may not operate properly.

The System may be limited when :

The radar sensor or camera is restricted with a foreign object or debris.

The camera lens is contaminated due to tinted filmed or coated windshield, damaged glass, or stuck of foreign matter (sticker, bug, etc.) on the glass.

Inclement weather such as heavy rain or snow obscures the field of view of the radar sensor or camera.

The target in front is too small to be detected

The vehicle in front is an oversize vehicle or trailer that is too big to be detected by the camera recognition system (for example a tractor trailer, etc.).

The camera's field of view is not well illuminated (either too dark or too much reflection or too much backlight that obscures the field of view)

The vehicle in front does not have their rear lights ON or their rear lights are located in an unsual location (modified).

The windshield glass is fogged up and the clear view of the road has been obstructed.

The camera or radar is damaged.
