Kia Optima: Cooling System / Cooling Fan

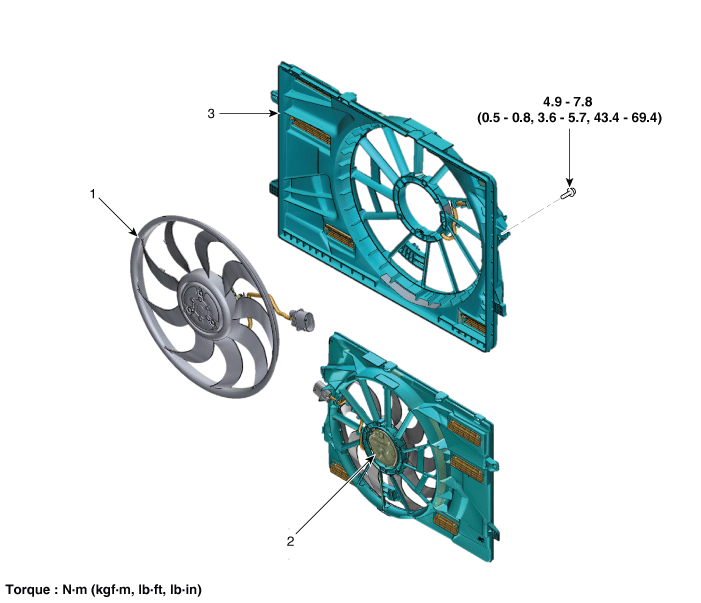

Components and components location

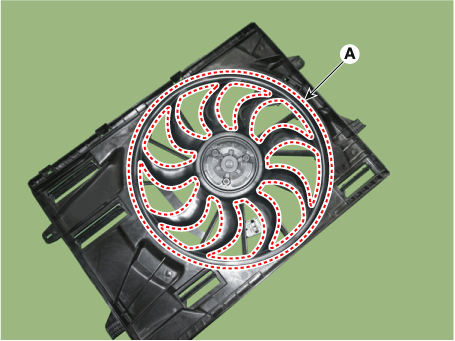

1. Cooling fan
2. Cooling fan motor
|
3. Cooling fan shroud
|
Specifications
Item
|
Specification
|
Fan type
|
PULLER
|
Fan speed control
|
Resisor
|
Air flow rate (㎥/h)
|
1,950 - 8% min.
|
Fan speed (rpm)
|
1,650 ± 8%
|
Current (A)
|
11.7 + 10% max.
|

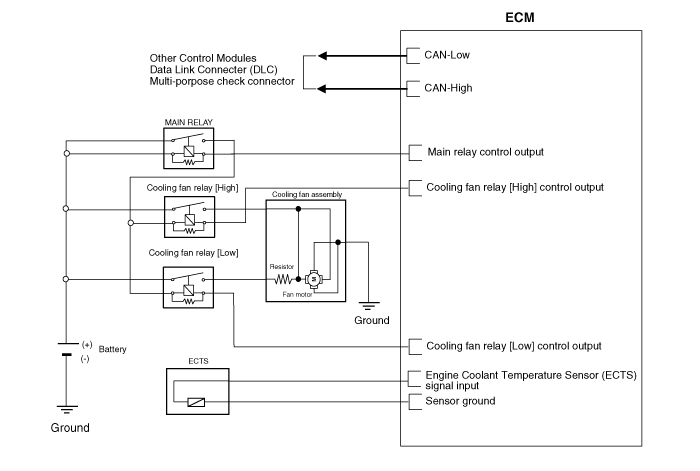

Schematic diagrams
Repair procedures
Cooling fan assembly
| 1. |
Disconnect the battery negative terminal.
|
| 2. |
Remove the air duct.
(Refer to Intake And Exhaust System - "Air Cleaner")
|
| 3. |

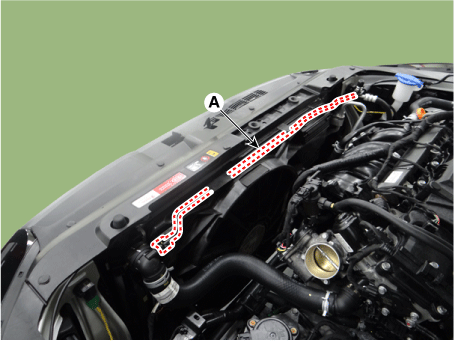

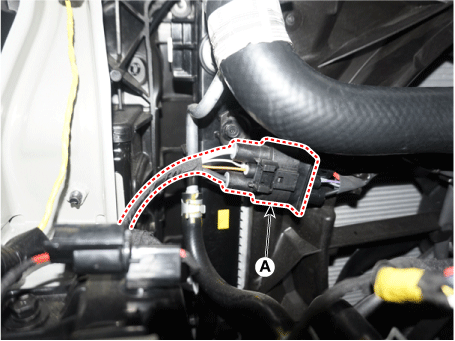

Disconnect the wiring harness connector (A).
|
| 4. |
Separate the degassing hose (A) from cooling fan.
|
Do not remove the degassing hose (A) from radiator upper hose.
|
|
| 5. |

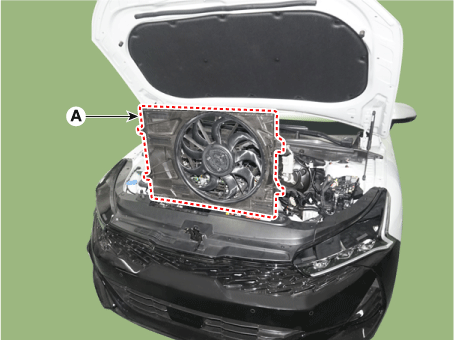

Remove the cooling fan assembly (A) from radiator.
|
Tightening torque :
4.9 - 7.8 N•m (0.5 - 0.8 kgf•m, 3.6 - 5.8 lb•ft, 43.4 - 69.4
lb•in)
|
|
| 6. |
Install in the reverse order of removal.
|
| 1. |

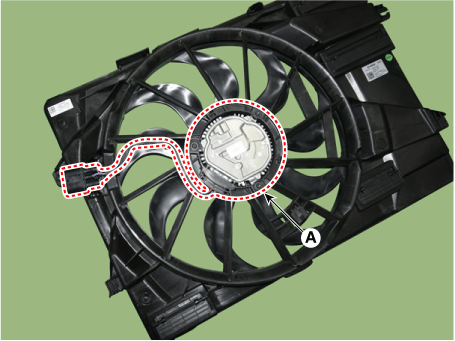

Remove the cooling fan and cooling fan motor (A) from the cooling fan
shroud.
|
Tightening torque :
4.5 - 5.0 N•m (0.45 - 0.5 kgf•m , 3.3 - 3.6 lb•ft, 39.1 - 43.4
lb•in)
|
|
| 2. |
Assemble in the reverse order of disassembly.
|
| 1. |
Turn ignition switch "OFF" and connect the KDS to the Data Link Connector.
|
| 2. |
With the gear shift in P (Park) position and ignistion switch "ON" (LED
of the Power button illuminates in Red), select the "force drive" function.
|
| 3. |
Force drive the cooling fan motor.
|
There are two functions for the fan motor force drive: Low speed
and high speed.
|

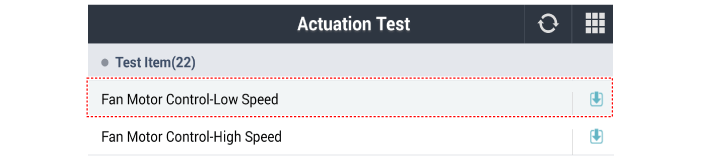

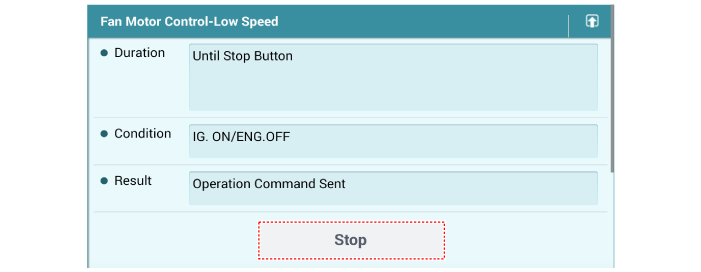

[Fan motor low speed]
| 1) |
Start the "Fan motor low speed" of the force drive function.
|
| 2) |
Force drive by pressing the start button.
|
| 3) |
Visually check the operation of the cooling fan.
|
| 4) |
Stop the force drive by pressing the stop button.
|

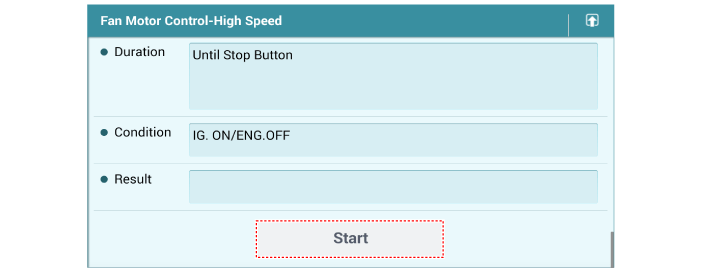

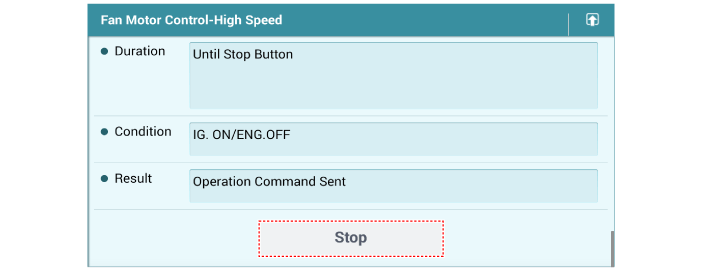

[Fan motor high speed]
| 1) |
Start the "Fan motor high speed" of the force drive function.
|
| 2) |
Force drive by pressing the start button.
|
| 3) |
Visually check the operation of the cooling fan.
|
| 4) |
Stop the force drive by pressing the stop button.
|
|
Repair procedures
Removal and Installation
1.
Remove the reservoir tank.
(1)
Disconnect the degassing hose (A).
(2 ...
