Kia Optima: Panorama Sunroof / Mechanism Rail

Kia Optima DL3 2019-2025 Service and Repair Manual / Body (Interior and Exterior) / Panorama Sunroof / Mechanism Rail

Repair procedures
Replacement
1.

Remove the roof trim.

2.

Remove the movable glass.

(Refer to Panorama sunroof - "Movable Glass")

3.

Remove the roller blind.

(Refer to Panorama sunroof - "Roller Blind")

4.

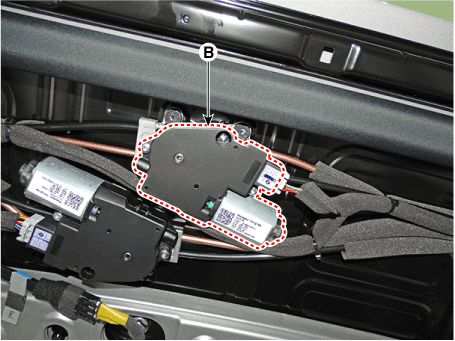

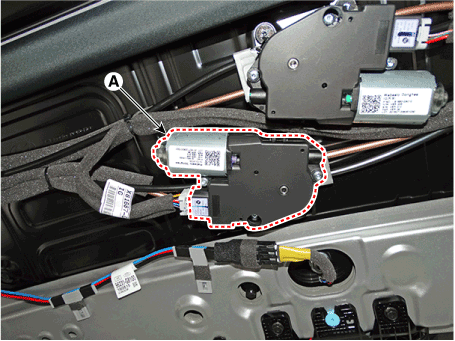

Loosen the mounting screws and remove the movable glass motor (A) roller blind motor (B).

5.

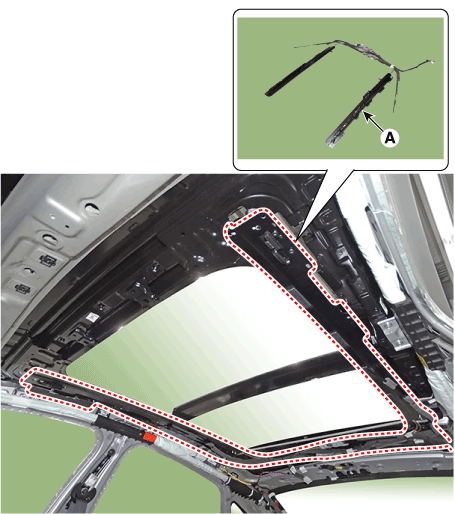

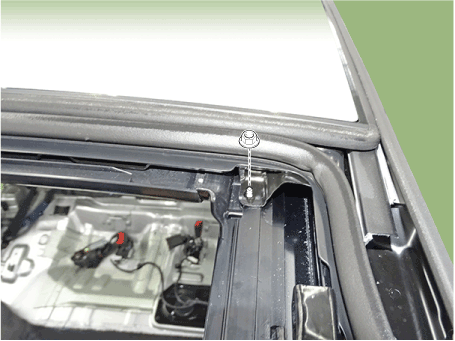

Loosen the mounting screws, nuts and remove the mechanism rail assembly (A).

6.

To install, reverse the removal procedure.
