Kia Optima: Body (Interior and Exterior) / Panorama Sunroof
Components and components location

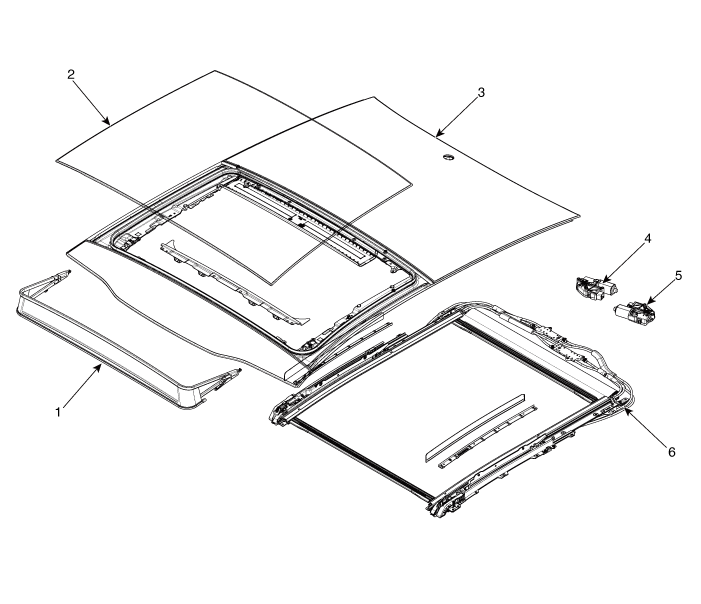

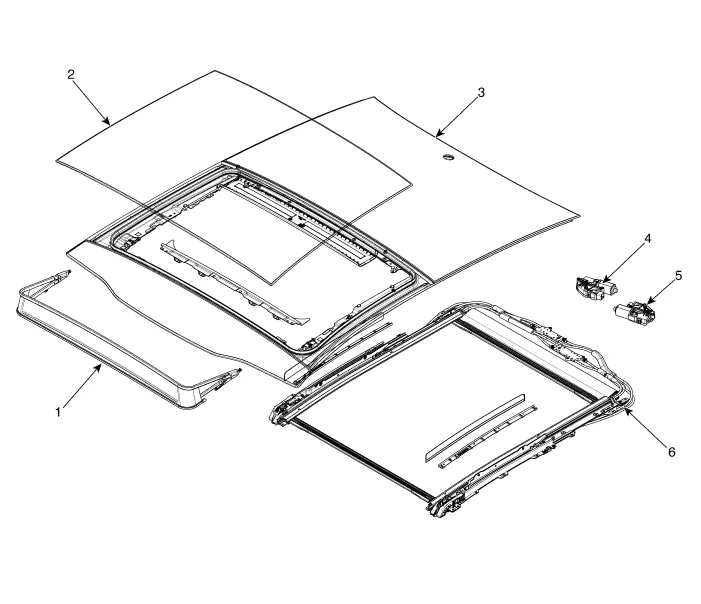

| Component |
| 1. Panorama sunroof deflector
2. Movable glass 3. Rear glass |
4. Glass motor assembly 5. Roller blind motor assembly 6. Mechanism rail assembly |
Repair procedures
| Alignment |
Glass step alignment
| 1. |

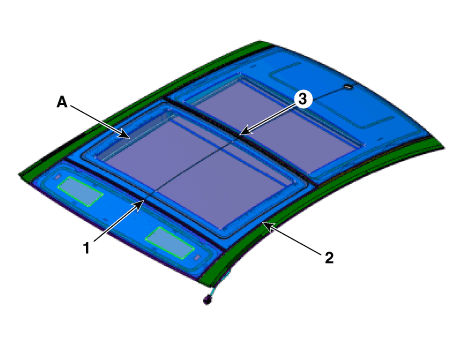

Perform considerable step alignment after replacing movable glass (A).
|
| 2. |

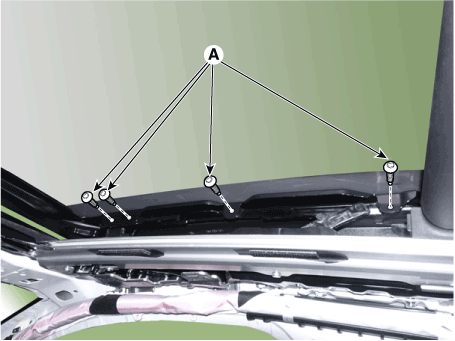

Perform hight adjustment releasing height adjust screw (A) a bit.
|
Initializing motor
| 1. |
Perform rest procedure When Start [ON] or motor is running. |
| 2. |
Close enough panorama sunroof glass (about 5 sec) and blind (about 5 sec). |
| 3. |
Hand off from adjusting lever when glass and blind are closed enough. |
| 4. |
Press adjusting lever (10 sec) until glass and blind is moving a bit once again to sunroof close direction when glass and blind is closed enough. |
| 5. |
Hand off and press panorama sunroof adjusting lever to close direction then glass and blind is opened and closed [①Blind is open in slide mode ②Sunroof glass is opened and closed in slide mode after tilt ③Blind is closed] Initializing is done. Never hand off from adjusting lever until finished completely. |
In case of motor initializing
| 1. |
First operation after manufactured |
| 2. |
When rest value is initialized or damaged by power failure or discharging |
| 3. |
After operating emergency handle |
| 4. |
When replacing battery and fuse |
| 5. |
After replacing motor and reparing sunroof |
Emergency operation
| 1. |
Emergency operation of panorama sunroof should not be performed except in case of closing or opening panorama sunroof when motor is defected. |
| 2. |
Panorama sunroof should be closed or opened after removing roof trim using hexgonal wrench. Do not use excessive force. |
| 3. |

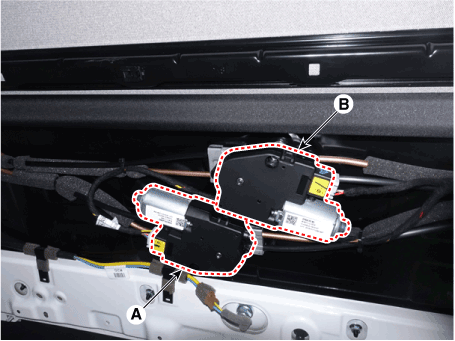

Perform initialization when necessary according the initialization procedure. [Movable glass motor (A) Roller blind motor (B)]
|
- Movable Glass
- Front Glass
- Rear Glass
- Panorama Sunroof Deflector
- Mechanism Rail
- Roller Blind
- Panorama Sunroof Assembly
- Roll Blind Cable Assembly
Trunk Lid Garnish
Repair procedures
Replacement
Put on gloves to protect your hands.
&nbs ...
Movable Glass
Repair procedures
Replacement
1.
Open movable glass completely pressing panorama sunroof switch.
2.
Remove the slide folding cover (A).
...
