Kia Optima: Trunk Lid / Trunk Lid Trim

Kia Optima DL3 2019-2024 Service and Repair Manual / Body (Interior and Exterior) / Trunk Lid / Trunk Lid Trim

Components and components location

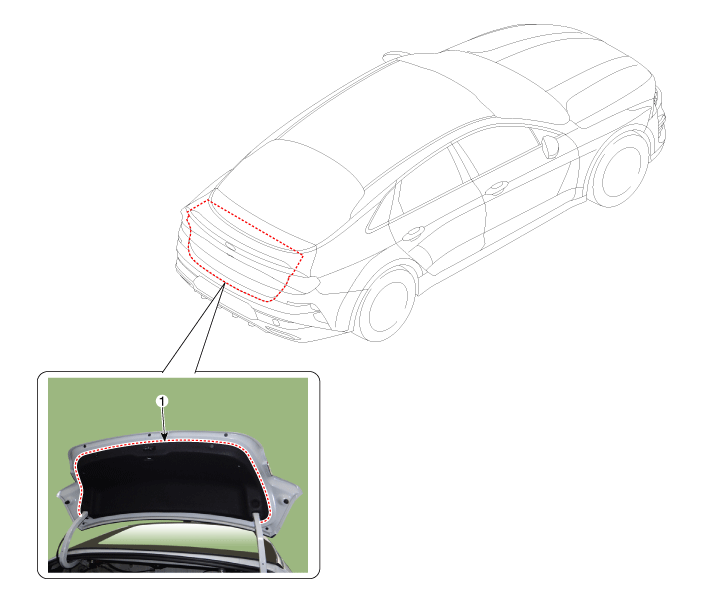

Component Location

1. Trunk lid trim

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

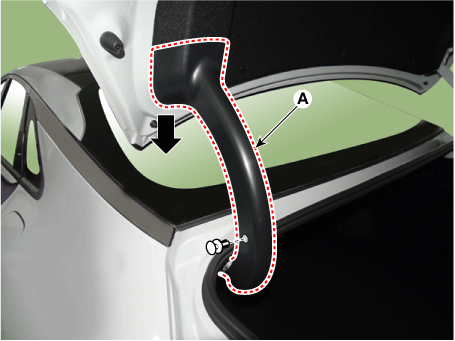

1.	Loosen the mounting clips and remove the trunk lid side cover (A).

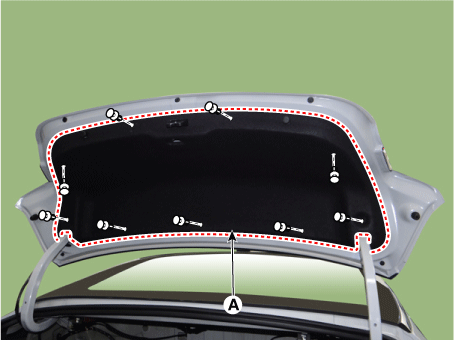

2.	Loosen the mounting clips and remove the trunk lid trim (A).

To install, reverse the removal procedure.

Replace any damaged clips.
