| Components |

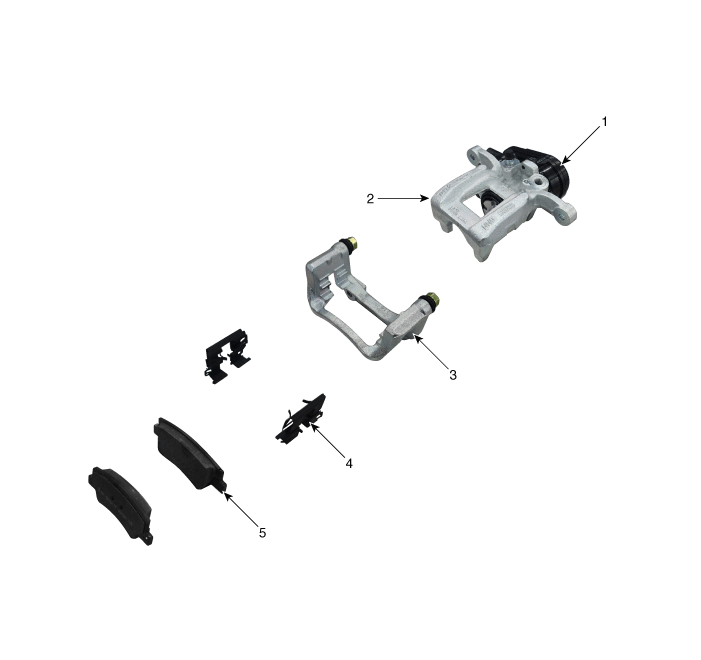

| [EPB Apply] |

| 1. EPB Actuator 2. Caliper body 3. Caliper carrier |
4. Pad retainer 5. Brake pad |

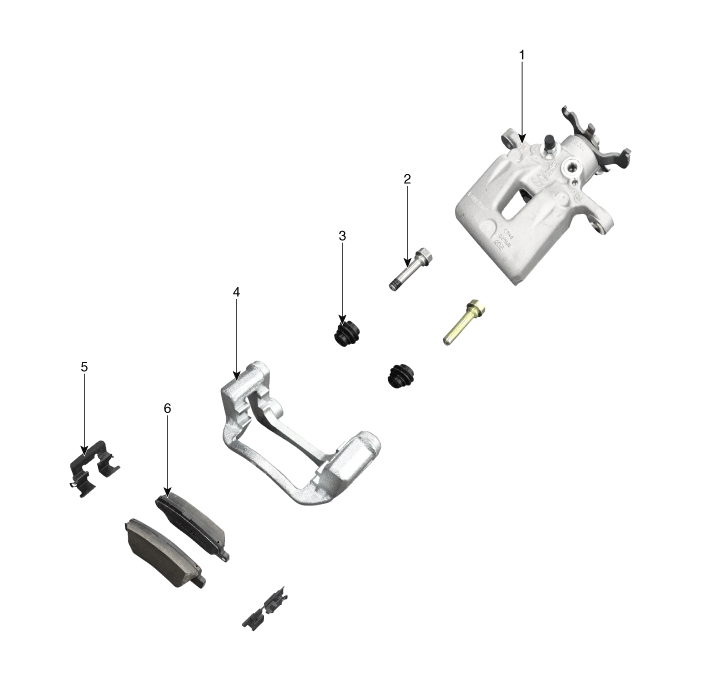

| [EPB None Apply] |

| 1. Caliper body 2. Guide rod pin 3. Guide rod boot |
4. Caliper carrier 5. Pad retainer 6. Brake pad |
| Removal |
[EPB Apply]
| 1. |
Release the parking brake. |
| 2. |

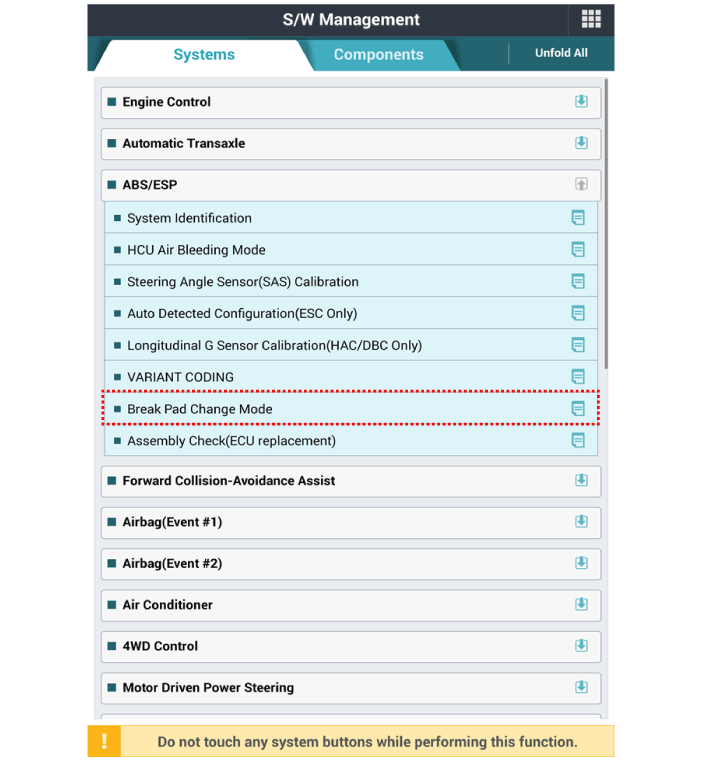

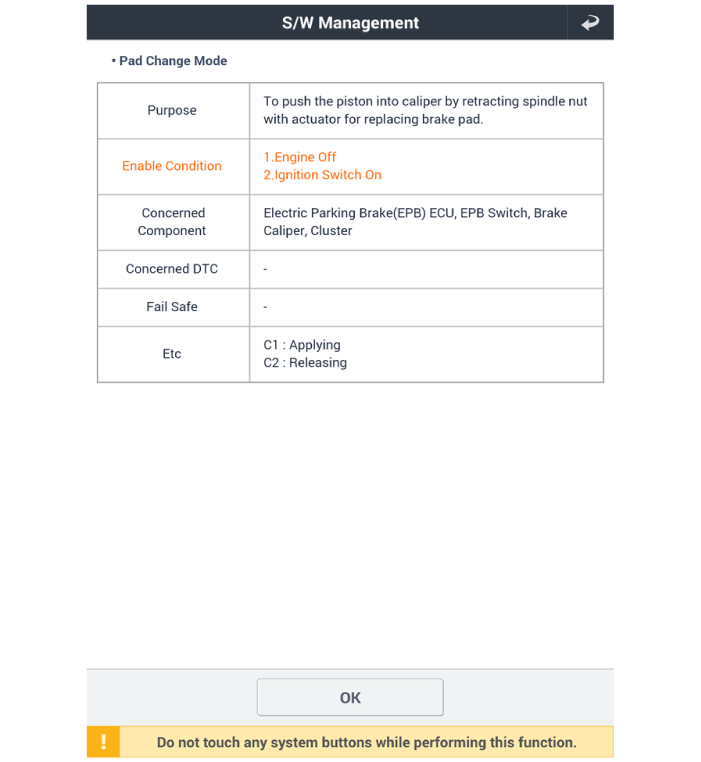

Before removing the rear caliper, perform “Brake Pad Replacement Mode” using the KDS.
|
| 3. |

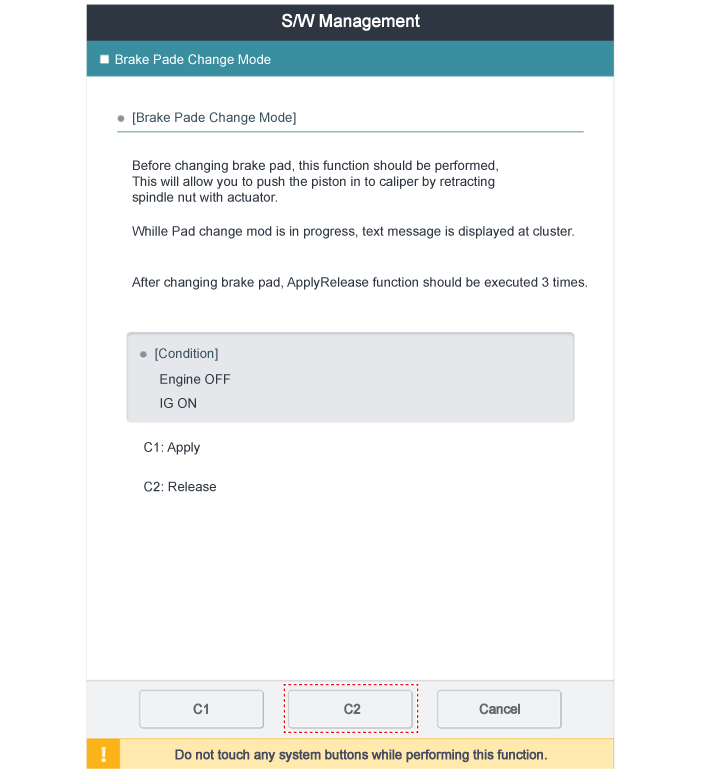

Select C2 (Release) on the screen below.
|
| 4. |
Disconnect the (-) battery terminal. |
| 5. |
Remove the rear wheel and tire. (Refer to Suspension System - "Wheel") |
| 6. |

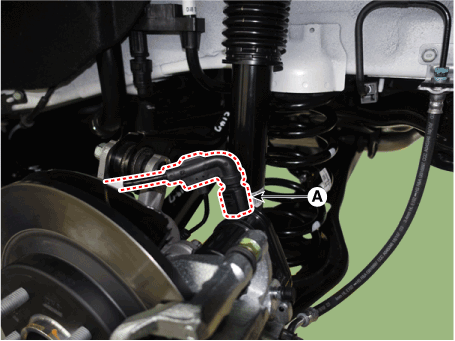

Disconnect the EPB actuator connector (A).
|
| 7. |

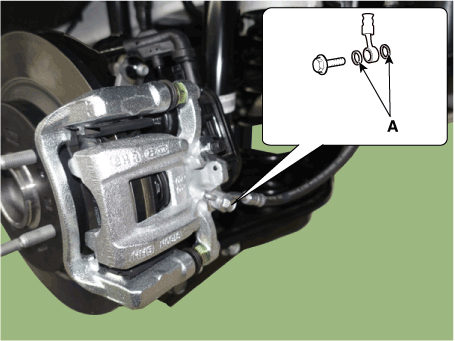

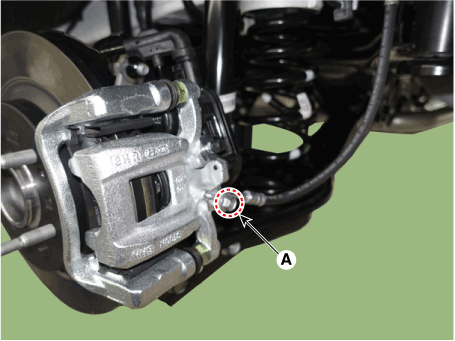

Remove the hose after loosening the brake hose bolt (A) from the caliper.
|
| 8. |

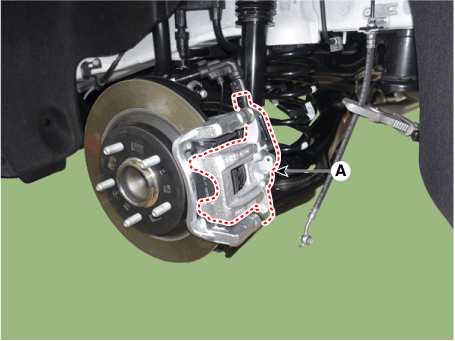

Remove the caliper body (A) after loosening the guide rod bolt.
|
| 9. |

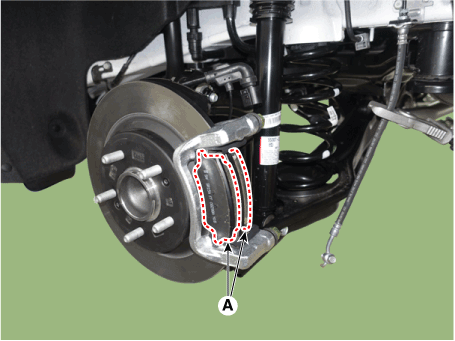

Remove the brake pad (A).
|
| 10. |

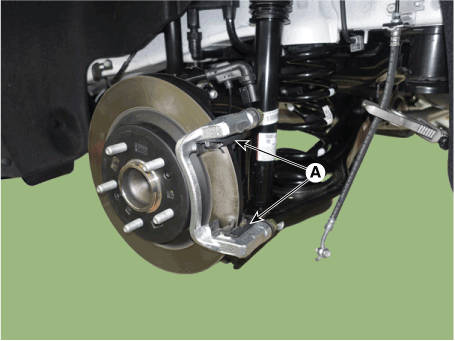

Remove the pad retainer (A).
|
| 11. |

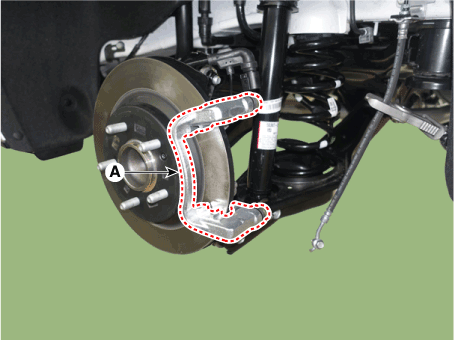

Remove the caliper carrier (A) after loosening the caliper mounting bolt.
|
[EPB None Apply]
| 1. |
Release the parking brake. |
| 2. |
Disconnect the (-) battery terminal. |
| 3. |
Remove the rear wheel and tire. (Refer to Suspension System - "Wheel") |
| 4. |

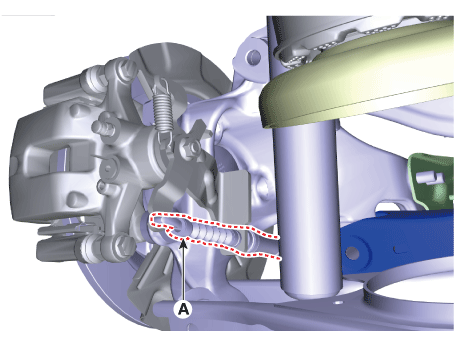

Disconnect the parking cable (A) after remove the parking brake cable fixing clip.
|
| 5. |
Loosen the brake hose bolt (A) from the caliper seperate the brake hose.
|
| 6. |
Remove the caliper body (A) after loosening the guide rod bolt.
|
| 7. |
Remove the brake pad (A).
|
| 8. |
Remove the pad retainer (A).
|
| 9. |
Remove the caliper carrier (A) after loosening the caliper mounting bolt.
|
| Installation |
| 1. |
Install in the reverse order of removal. |
| 2. |

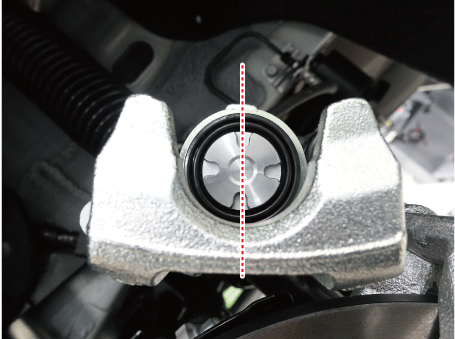

Use a SST (09580-0U000) when installing the brake caliper assembly.
|
| 3. |
After installation, bleed the brake system. (Refer to Brake system - "Brake Bleeding Procedures") |
| 4. |
Apply the parking brake several times and check for normal operation.
|
| 5. |
Check the spilled brake oil. |
| 6. |
Apply the parking brake several times and check for normal operation. |
