Kia Optima: Power Windows / Power Window Switch
Schematic diagrams
| Connector and Terminal Function |

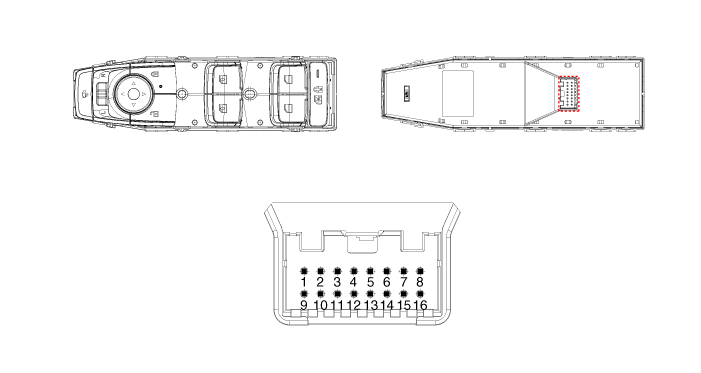

Power Window Main Switch
|
Pin |
Function |
|
1 |
B-CAN (Low) |
|
2 |
B-CAN (High) |
|
3 |
Ground (Assist safety) |
|
4 |
Assist safety |
|
5 |
LIN (For IMS) |
|
6 |
Battery (+) |
|
7 |
IGN1 |
|
8 |
Driver safety |
|
9 |
IMS Switch (For IMS) / Mirror Common (For Non IMS) |
|
10 |
Mirror unfolding motor (Non IMS) |
|
11 |
Mirror folding motor (Non IMS) |
|
12 |
Mirror horizontal LH (Non IMS) |
|
13 |
Mirror vertical LH (Non IMS) |
|
14 |
Mirror vertical RH (Non IMS) |
|
15 |
Mirror horizontal RH (Non IMS) |
|
16 |
Ground |

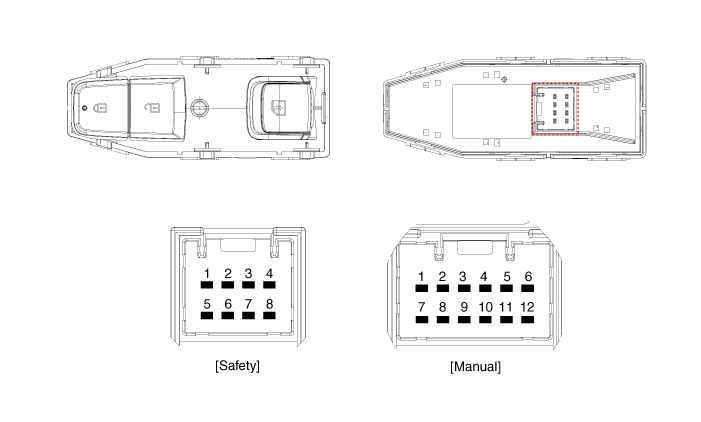

Power Window Sub Switch
|
Pin |
Function |
|
|
Safety Type |
Manual Type |
|
|
1 |
Ground (Illumination -) |
Ground |
|
2 |
Door lock switch |
Door lock switch |
|
3 |
Door unlock switch |
Window down motor |
|
4 |
Battery + (Illumination +) |
Door unlock switch |
|
5 |
Ground |
Window up motor |
|
6 |
Door lock indicator |
Door lock indicator |
|
7 |
Safety power window |
Driver window down |
|
8 |
- |
Window enble |
|
9 |
|
Ground (Illumination -) |
|
10 |
Driver window up |
|
|
11 |
Ground (Illumination +) |
|
|
12 |
Battery (+) |
|

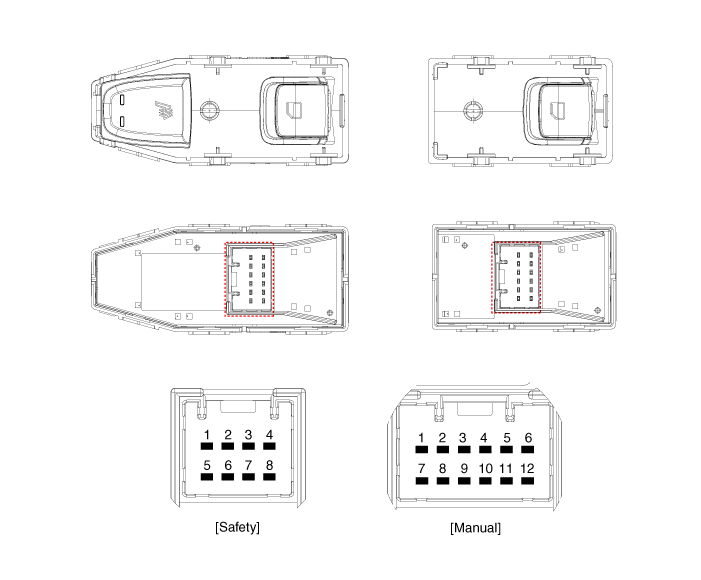

Power Window Rear Switch
[Seat Warmer Type]
|
Pin |
Function |
|
|
Safety Type |
Manual Type |
|
|
1 |
Ground (Illumination -) |
Ground |
|
2 |
Seat warmer (High) |
Seat warmer (High) |
|
3 |
Seat warmer (Low) |
Window down motor |
|
4 |
Battery + (Illumination +) |
Seat warmer (Low) |
|
5 |
Ground |
Window up motor |
|
6 |
- |
Seat warmer switch |
|
7 |
Safety power window |
Driver window down |
|
8 |
Seat warmer switch |
Window enble |
|
9 |
|
Ground (Illumination -) |
|
10 |
Driver window up |
|
|
11 |
Battery + (Illumination +) |
|
|
12 |
Battery (+) |
|
[Non-Seat Warmer Type]
|
Pin |
Function |
|
|
Safety Type |
Manual Type |
|
|
1 |
Ground (Illumination -) |
Ground |
|
2 |
- |
- |
|
3 |
- |
Window down motor |
|
4 |
Battery + (Illumination +) |
- |
|
5 |
Ground |
Window up motor |
|
6 |
- |
- |
|
7 |
Safety power window |
Driver window down |
|
8 |
- |
Window enble |
|
9 |
|
Ground (Illumination -) |
|
10 |
Driver window up |
|
|
11 |
Battery + (Illumination +) |
|
|
12 |
Battery (+) |
|
Repair procedures
| Inspection |
Diagnosis With KDS
| 1. |
In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (KDS). The diagnostic system (KDS) provides the following information.
|
| 2. |
Select the "Car model" and the 'DDM' to be checked in order to check the vehicle with the tester. |
| 3. |
Select the 'Current Data' menu to search the current state of the input/output data. |
| 4. |
To force actuate the input value of the module to be checked, select option 'Actuation Test'. |
| Removal |
Power Window Main Switch
| 1. |
Disconnect the negative battery terminal. |
| 2. |
Remove the driver side front door trim. (Refer to Body - "Front Door Trim") |
| 3. |

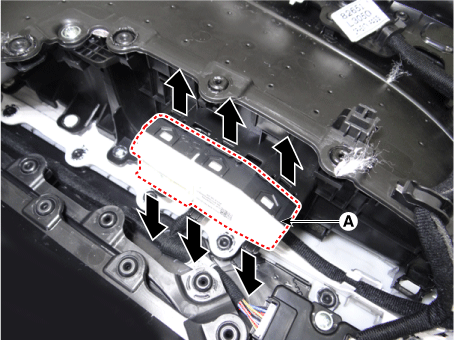

Remove the power window main switch (A) by pushing the holders in the direction of arrow.
|
Power Window Sub Switch
| 1. |
Disconnect the negative battery terminal. |
| 2. |
Remove the passenger side front door trim. (Refer to Body - "Front Door Trim") |
| 3. |

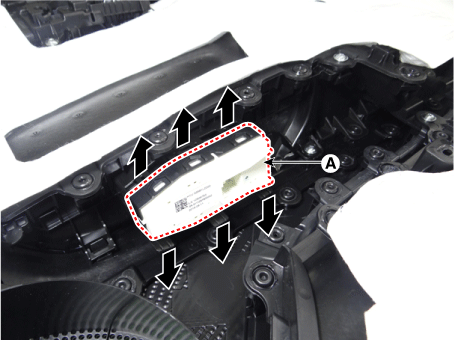

Remove the power window sub switch (A) by pushing the holders in the direction of arrow.
|
Power Window Rear Switch
| 1. |
Disconnect the negative battery terminal. |
| 2. |
Remove the rear door trim. (Refer to Body - "Rear Door Trim") |
| 3. |

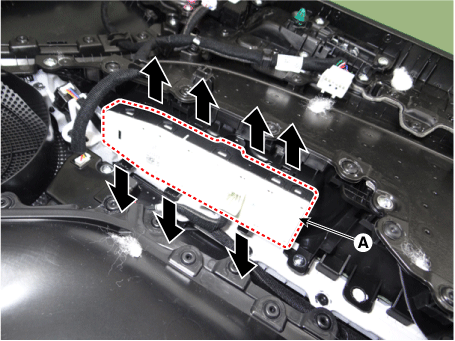

Remove the power window rear switch (A) by pushing the holders in the direction of arrow.
|
| Installation |
| 1. |
Install in the reverse order of removal. |
Power Window Motor
Schematic diagrams
Circuit Diagram
[Safety Window Motor]
[Standard Window Motor]
Repair procedures
Inspection
Front Power Window
Motor
1.
Disconn ...
