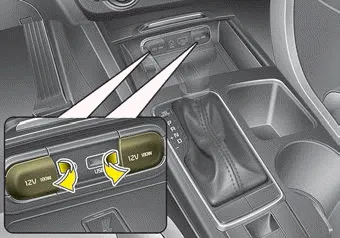

■ Front seat

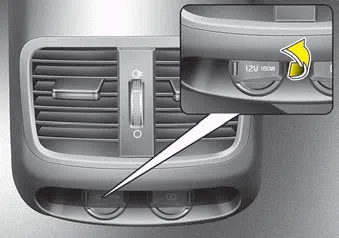

■ Rear seat
The power outlet is designed to provide power for mobile telephones or other devices designed to operate with vehicle electrical systems. The devices should draw less than 10 amps with the engine running.
WARNING - Electric shock
Do not put a finger or a foreign object (pen, etc.) into a power outlet and do not touch with a wet hand. You may receive an electric shock.
Use the sunvisor to shield direct light through the front or side windows. To use the sunvisor, pull it downward. To use the sunvisor for the side window, pull it downward, unsnap it from the bracket (1) and swing it to the side (2).
■ Front seat ■ Rear seat The USB charger is designed to recharge batteries of small size electrical devices using a USB cable.The electrical devices can be recharged when the Engine Start/Stop button is in ACC/ON/START position.
