Kia Optima: Scheduled maintenance service / Maintenance Under Severe Usage Conditions - Non Turbo Models

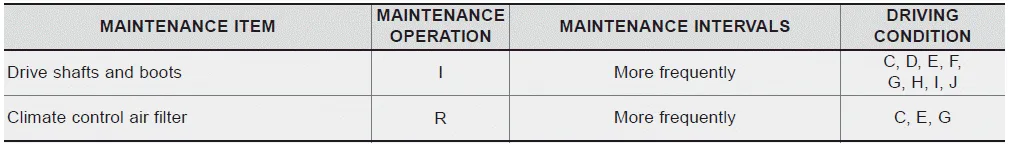

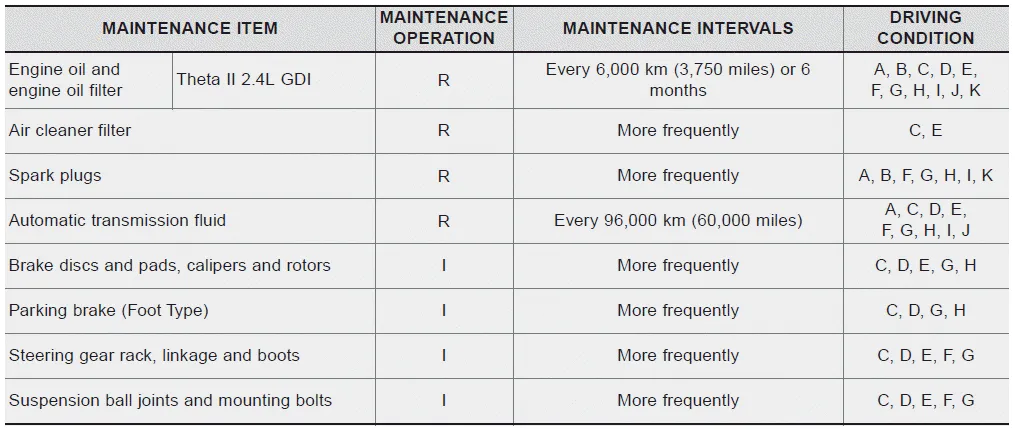

The following items must be serviced more frequently on cars normally used under
severe driving conditions. Refer to the chart below for the appropriate maintenance
intervals.
R : Replace
I : Inspect and, after inspection, clean, adjust, repair or replace if necessary
Severe driving conditions
A- Repeatedly driving short distance of less than 8 km (5 miles) in normal temperature
or less than 16 km (10 miles) in freezing temperature
B- Extensive engine idling or low speed driving for long distances
C-Driving on rough, dusty, muddy, unpaved, graveled or saltspread roads
D-Driving in areas using salt or other corrosive materials or in very cold weather
E-Driving in heavy dust condition
F - Driving in heavy traffic area
G- Driving on uphill, downhill, or mountain road repeatedly
H-Towing a Trailer, or using a camper, or roof rack
I -Driving as a patrol car, taxi, other commercial use or vehicle towing
J - Driving over 170 km/h (106 mph)
K-Frequently driving in stop-and-go conditions
The following maintenance services must be performed to ensure good emission
control and performance.
Keep receipts for all vehicle emission services to protect your warranty. Where
both mileage ...
Engine oil and filter
The engine oil and filter should be changed at the intervals specified in the
maintenance schedule. If the vehicle is being driven in severe conditions, more
frequent oil an ...
