Kia Optima: Body Electrical System / Lighting System
Kia Optima DL3 2019-2024 Service and Repair Manual / Body Electrical System / Lighting System
Specifications
| Specification |
|
Item |
Tyep |
Watt (W) |
|||
|
Front |
Headlamp |
A Type |
High beam |
LED |
- |
|
Low beam |
LED |
- |
|||
|
Position/DRL |
LED |
- |
|||
|
B Type |
High beam |
LED |
- |
||
|
Low beam |
LED |
- |
|||
|
Low assist |
LED |
- |
|||
|
Position/DRL |
LED |
- |
|||
|
Turn signal lamp |
LED |
- |
|||
|
Fog lamp |
LED |
- |
|||
|
Turn signal lamp (Front air duct) |
PY21W |
21 |
|||
|
Turn signal lamp (Outside mirror side) |
LED |
- |
|||
|
Rear |
Rear combination lamp |
A Type |
Tail/Stop lamp |
21/5W |
21/5 |
|
Tail lamp |
W5W |
5 |
|||
|
Turn signal lamp |
PY21W |
21 |
|||
|
Back up lamp |
W16W |
16 |
|||
|
B Type |
Tail/Stop lamp |
LED |
- |
||
|
Tail lamp |
LED |
- |
|||
|
Turn signal lamp |
PY21W |
21 |
|||
|
Back up lamp |
W16W |
16 |
|||
|
High mounted stop lamp |
LED |
- |
|||
|
License plate lamp |
W5W |
5 |
|||
|
Interior |
Overhead console lamp |
LED |
- |
||
|
Room lamp |
LED |
- |
|||
|
Personal lamp |
LED |
- |
|||
|
Vanity lamp |
W5W |
5 |
|||
|
Trunk room lamp |
FESTOON |
5 |
|||
Components and components location
| Component Location |

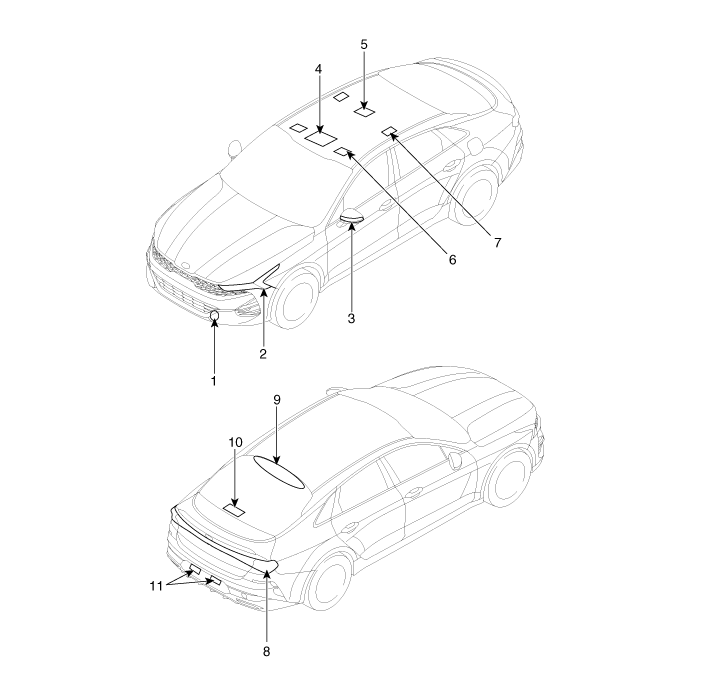

| 1. Front fog lamp 2. Headlamp 3. Side repeater lamp (Outside mirror side) 4. Overhead console lamp 5. Room lamp (Non-Panorama sunroof type) 6. Vanity lamp |
7. Personal lamp (Panorama sunroof
type) 8. Rear combination lamp 9. High mounted stop lamp 10. Trunk room lamp 11. License plate lamp |
- Fog Lamp
- Hazard Lamp Switch
- Headlamps
- High Mounted Stop Lamp
- License Lamps
- Trunk Room Lamp
- Overhead Console Lamp
- Rear Combination Lamp
- Rheostat
- Room Lamp
- Vanity Lamp
- Personal Lamp
- Mood Lamp Unit
Keyless Entry And Burglar Alarm
Specifications
Specification
Item
Specification
Operating temperature
14 - 140°F (-10 - 60°C)
RF Modulation
...
Fog Lamp
Repair procedures
Removal
Front Fog Lamp
1.
Disconnect the negative battery terminal.
2.
Remove the front bumper assembly.
(Refer to Body - &quo ...
