Kia Optima: Body Electrical System / Horn

Kia Optima DL3 2019-2025 Service and Repair Manual / Body Electrical System / Horn

Specifications

Item	Specification	Remark
Operating voltage	9 - 16 V	-
Current consumption	MAX 5.0 A	At 12 V
Sound level	111 ± 3 dB	At 13 V, 2 m
Insulation resistance	MIN 1 MΩ	By 500 V megameter

Components and components location

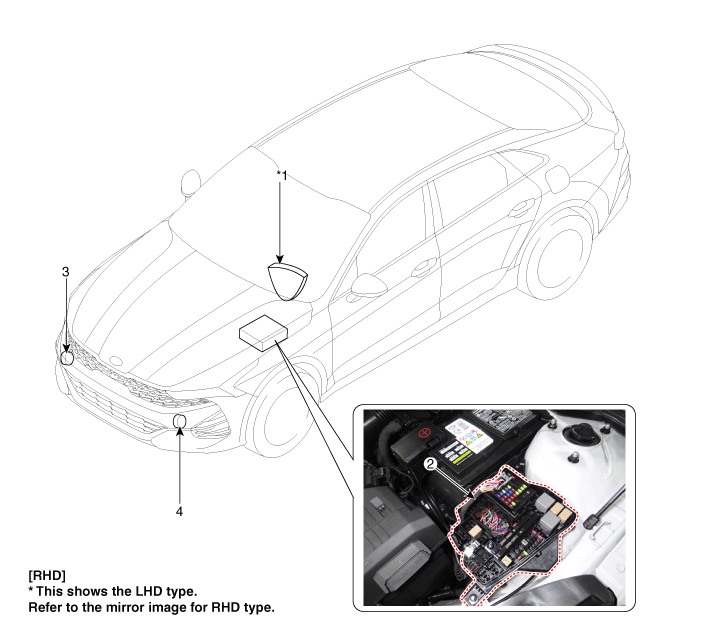

Component Location

1. Horn switch
2. Engine room junction block (Horn fuse)

3. Horn (Low pitch)
4. Horn (High pitch)

Repair procedures

Removal

1.	Disconnect the negative battery terminal.

2.	Remove the front bumper assembly. (Refer to Body - "Front Bumper assembly")

3.	Disconnect the horn connector (A).

Remove the horn (B) by loosening the bolt.

Tightening torque :

9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

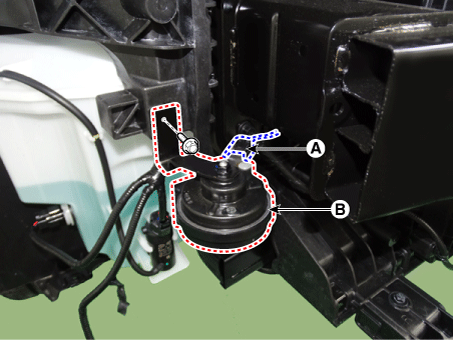

[Low pitch]

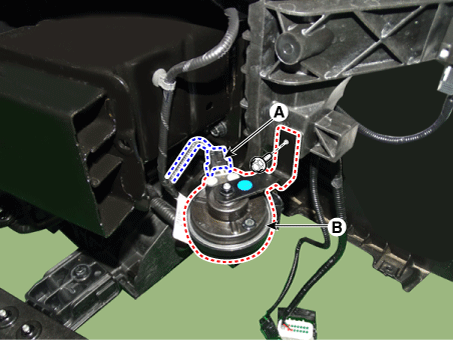

[High pitch]

Installation

1.	Install in the reverse order of removal.

Inspection

1.	The relay on the horn of this vehicle is implanted into the metal core block PCB of the engine room relay block.

The semi-conductor type relay inserted in the PCB is impossible to replace. If the relay needs to be replaced, replace the metal core box and conduct a test on it.
