Kia Optima DL3: Hood / Hood Latch Release Handle

Kia Optima DL3 2019-2026 Service and Repair Manual / Body (Interior and Exterior) / Hood / Hood Latch Release Handle

Components and components location

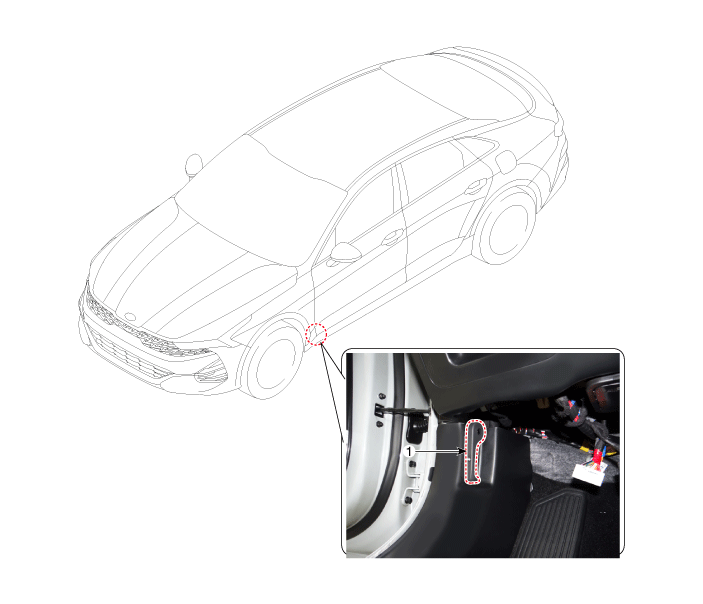

Component Location

1. Hood latch release handle


Repair procedures

Replacement
1.

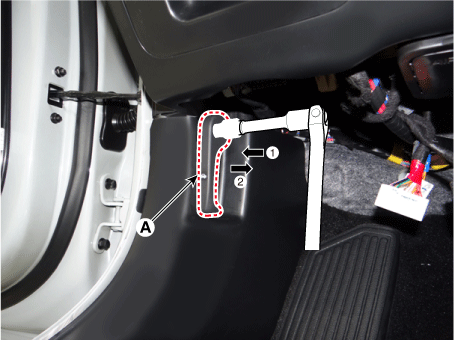

Using a socket, remove the hood release handle (A).

2.

To install, reverse the removal procedure.


•

Make sure the hood latch cable is connected properly.

•

Make sure the hood locks / unlocks and opens / closes properly.
