Kia Optima DL3: Front Door / Front Door Belt Inside Weatherstrip

Kia Optima DL3 2019-2026 Service and Repair Manual / Body (Interior and Exterior) / Front Door / Front Door Belt Inside Weatherstrip

Repair procedures

Replacement
1.

Remove the front door trim.

(Refer to Front Door - "Front Door Trim")

2.

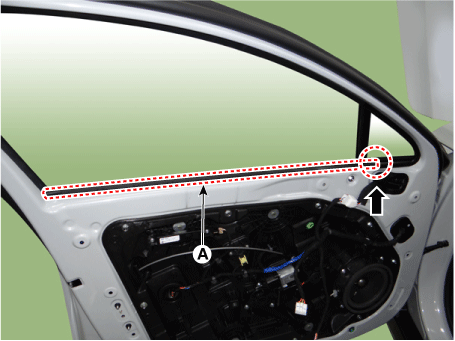

Remove the front door belt inside weatherstrip (A).
3.

To install, reverse the removal procedure.


•

When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.
•

Replace any damaged clips (or pin-type retainers).

    Repair procedures Replacement 1. Pull down the front door window glass to the lowest level by pressing the power window glass switch.

    Repair procedures Replacement [Front door side weatherstrip] 1. Loosen the front door checker (B) mounting bolt.
