Kia Optima: Crash Pad / Cowl Cross Bar Assembly
Components and components location

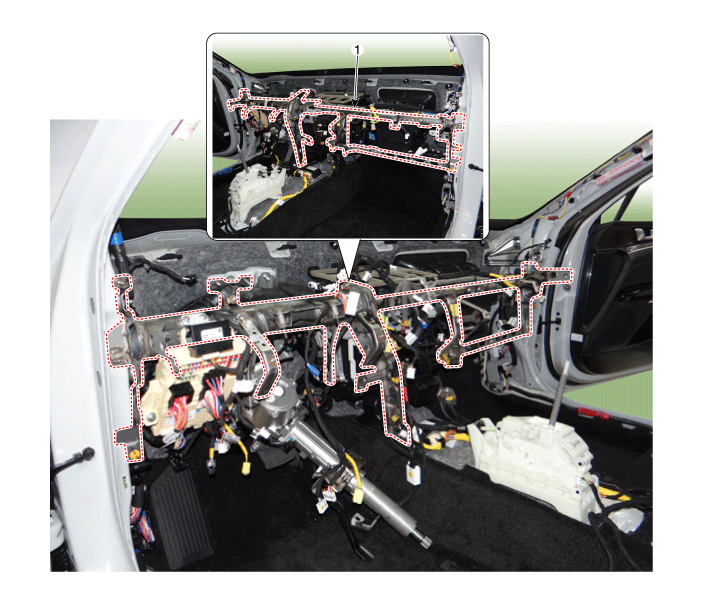

1. Cowl cross bar assembly
|
|
Repair procedures
• |
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components.
|
• |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
• |
Take care not to bend or scratch the trim and panels.
|
• |
Put on gloves to prevent hand injuries.
|
|
1. |
Disconnect the negative (-) battery terminal.
|
2. |
Remove the main crash pad assembly.
(Refer to Crash Pad - "Main Crash Pad Assembly")
|
3. |
Remove the knee airbag(KAB).
(Refer to Restraint - "Knee Airbag(KAB)")
|
4. |
Disconnect the steering column connectors.
(Refer to Steering System - "Steering Column and Shaft")
|
5. |
Loosen the mounting nuts and through bolts in the frontal area and lower
the steering column.
(Refer to Steering System - "Steering Column and Shaft")
|
6. |

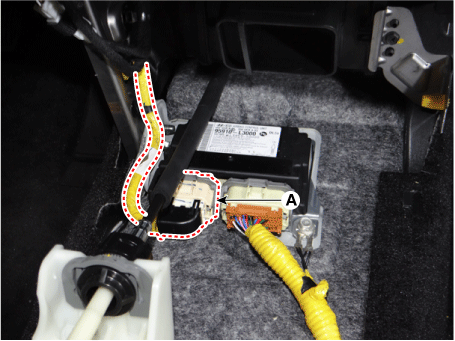

Press the lock pin and separate the airbag system control module connector
(A).

|
7. |

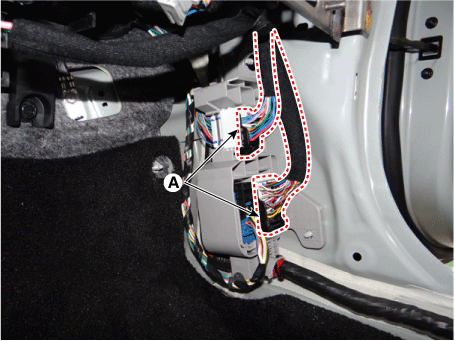

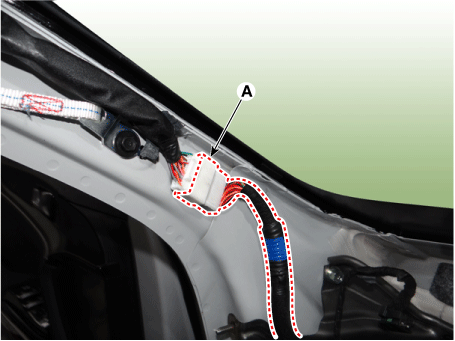

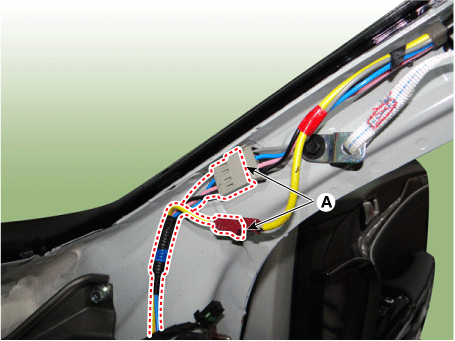

Remove the mounting clips from the front pillar area and disconnect the
various connectors (A).
[Driver]

[Passenger]

|
8. |

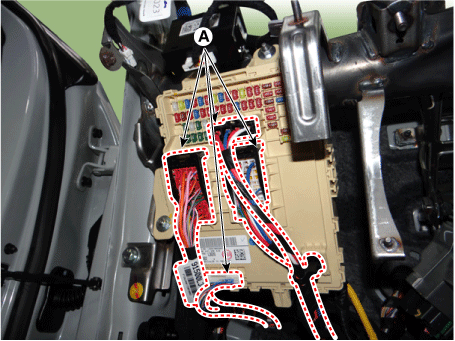

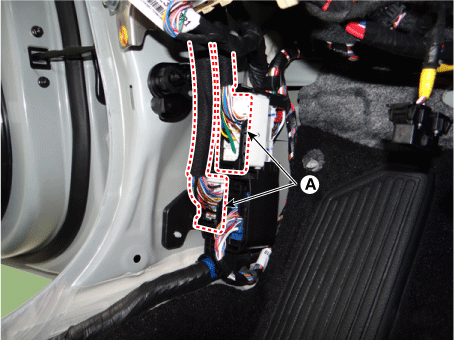

Disconnect the passenger compartment junction box connectors (A).

|
9. |
Disconnect the multi box connectors (A).
[Driver]

[Passenger]

|
10. |
Separate the heater and blower unit connector.
[Driver]
1) |

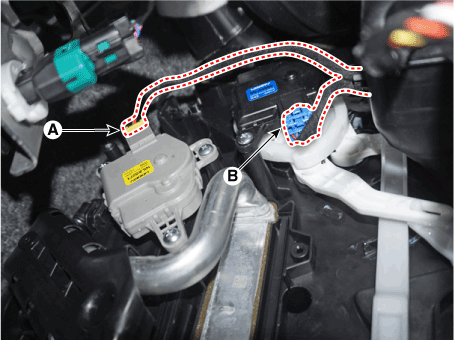

Separate the temperture control actuator (A) and mode control
actuator (B) connectors.

|
[Passenger]
1) |

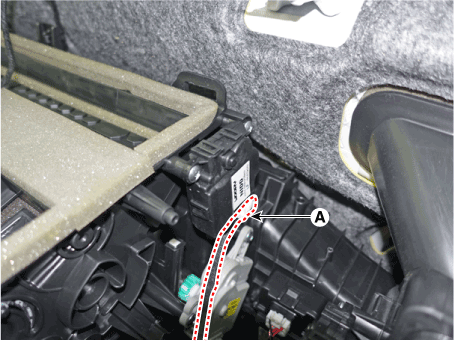

Separate the auto defogging actuator connector (A).

|
2) |

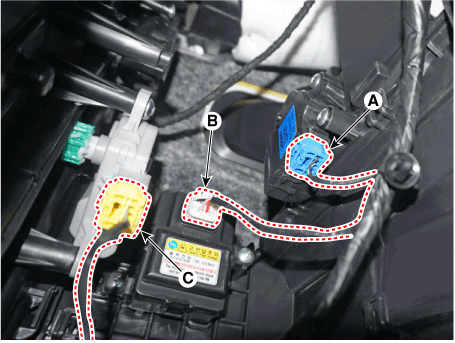

Separate the intake actuator (A), cluster ionizer (B), temperture
control actuator (C) connectors.

|
3) |

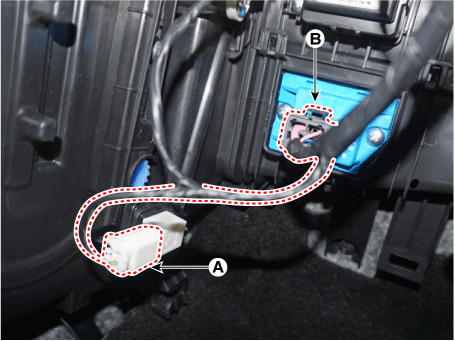

Separate the evaporator sensor (A) and power mosfer (B) connectors.

|
|
11. |

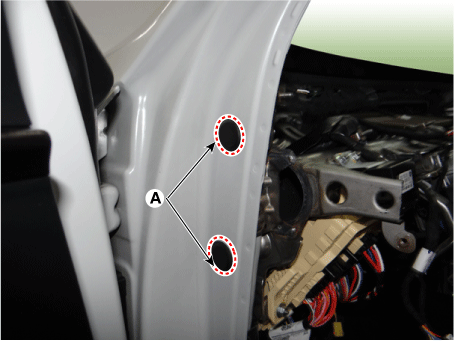

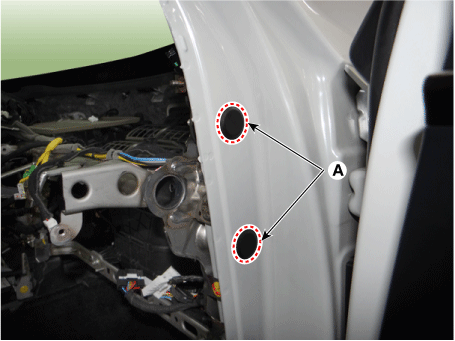

Remove the plug hole (A) and loosen the cowl cross bar side mounting
bolts.
[LH]

[RH]

|
12. |
Remove the battery.
G 2.0 NU MPI (Refer to Engine Electrical System - "Battery")
G 2.5 GDI THETA II (Refer to Engine Electrical System - "Battery")
|
13. |

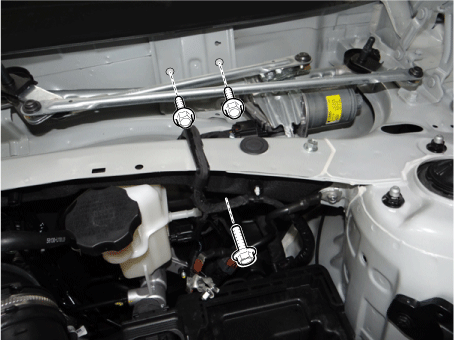

Loosen the engine room cowl cross bar assembly mounting bolts.

|
14. |

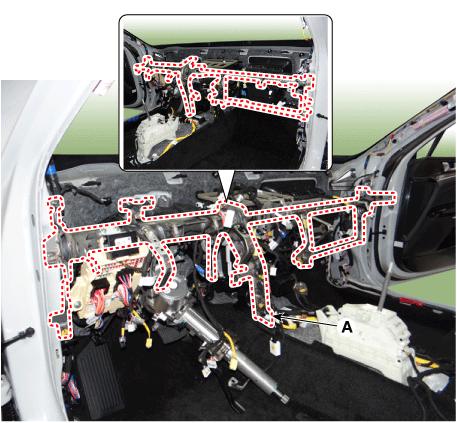

Loosen the mounting bolts remove the cowl cross bar assembly (A).
Tightening torque :
16.7 - 22.6 N.m (1.7 - 2.3 kgf.m, 12.3 - 16.6 lb-ft)
|

|
15. |

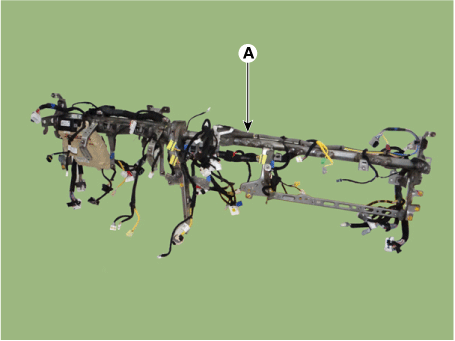

Separate the main wiring (A) from cowl cross bar assembly.

Refit the main wiring exactly as it was originally intended.
|
|
16. |
To install, reverse the removal procedure.
•
|
Make sure the crash pad fits onto the guide pins correctly.
|
•
|
Before tightening the bolts, make sure the crash pad
wire harnesses are not pinched.
|
•
|
Make sure the connectors are plugged in properly, and
the antenna lead is connected properly.
|
•
|
Make sure that each of the assembly components operates
properly.
|
•
|
Replace any damaged clips (or pin-type retainers).
|
|
|
