Specifications
Specification

Item
Specification
Control type
N/L (Normal Low)
Control pressure (kpa (kgf/cm², psi))
0 - 1,569.06 (0 - 16, 0 - 227.57)
Current (mA)
0 - 1,100
Coil resistance (Ω)
5.3 ± 0.3

Description and operation
Description

35R clutch control solenoid valve is a Variable Force Solenoid (VFS) type.

When TCM supplies variable current to solenoid valve, hydraulic pressure of 35R clutch is controlled by solenoid valve.

35R clutch control solenoid valve operation table


35R/C_VFS
N/L
N, P

1

2

3
●
4

5
●
6

R
●

● : Connected status

Components and components location
Component Location

1. Valve Body Cover
8. SS-A ON/OFF Solenoid Valve
2. Valve Body Gasket
9. Torque Converter Control Solenoid Valve
3. Main Harness
10. Line Pressure Control Solenoid Valve
4. 26 Brake Control Solenoid Valve
11. Support Bracket
5. 35R Clutch Control Solenoid Valve
12. Support Bracket
6. Underdrive Brake Control Solenoid Valve
7. Overdrive Clutch Control Solenoid Valve


Repair procedures
Inspection
1.

The automatic transaxle system can be more quickly diagnosed for troubles by using the vehicle diagnostic system (KDS). (Refer to "DTC guide")

KDS provides the following information.

(1)

Self diagnosis : Inspects and displays diagnostic trouble code (DTC)

(2)

Sensor data : Checks the system input/output value status

(3)

Forced operation : Checks the system operating status

(4)

Additional function : Controls system options, zero point adjustment and other functions

Component inspection
1.

Switch "OFF" ignition.

2.

Remove the air cleaner assembly.

(Refer to Engine Mechanical System - "Air cleaner")

3.

Remove the battery and battery tray.

(Refer to Engine Electrical System - "Battery")

4.

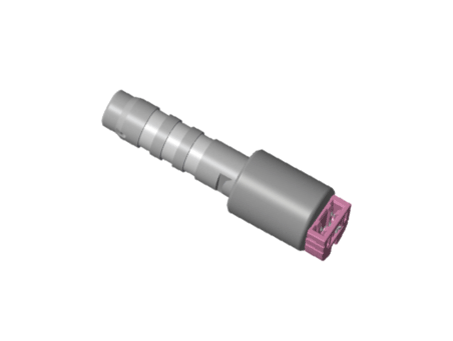

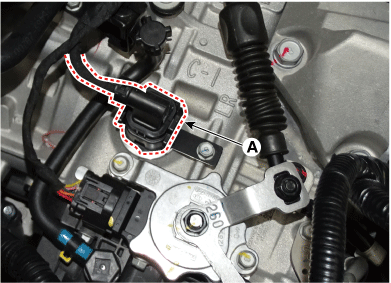

Disconnect the solenoid valve connector (A).

5.

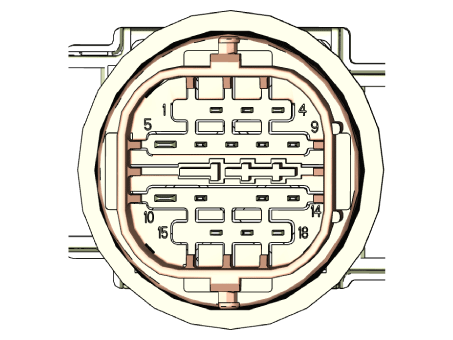

Measure the resistance between power terminal (10) and signal terminal (6).

Specification : 5.3 ± 0.3 Ω

Removal


Automatic transaxle is composed of delicate components. Be careful not to cause any damage on the component in the course of assembly and disassembly.

Maintain clean condition so that foreign substance does not get into the automatic transaxle.

Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.

1.

Remove the under cover.

(Refer to Engine Mechanical System - "Engine Room Under Cover")

2.

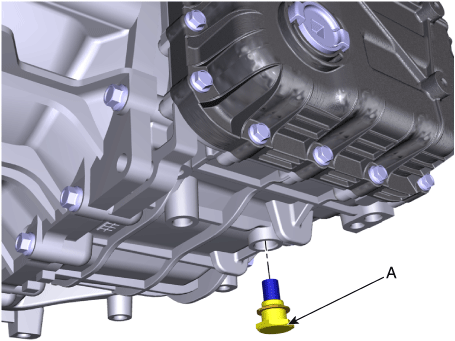

Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.

Tightening torque:

33.3 - 43.1 N·m (3.4 - 4.4 kgf·m, 24.6 - 31.8 lb·ft)



The existing ATF drain plug gasket must be replaced with a new one. (Do not reuse it.)

Automatic transaxle fluid (ATF) can be reused. Collect it using a clean 10-liter beaker.

3.

Remove the air duct and air cleaner assembly.

(Refer to Engine Mechanical System - "Air cleaner")

4.

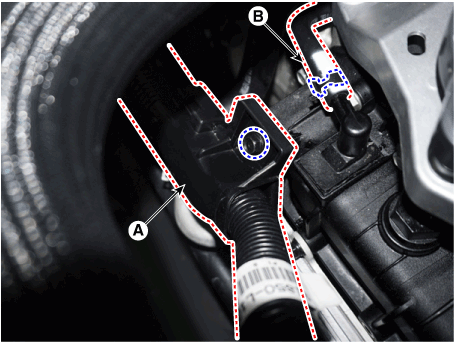

Remove the fixing clip (A) and the air breather hose (B).

Tightening torque:

9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

5.

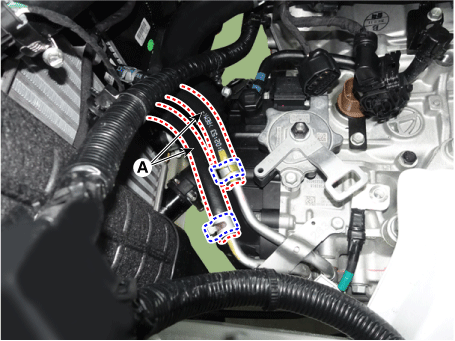

Separate the ATF cooler hose (A).

6.

Lift the vehicle after loosening valve body cover upper bolts.

7.

Remove the valve body cover (A) by loosening bolts.

Tightening torque:

11.8 - 13.7 N·m (1.2 - 1.4 kgf·m, 8.7 - 10.1 lb·ft)

8.

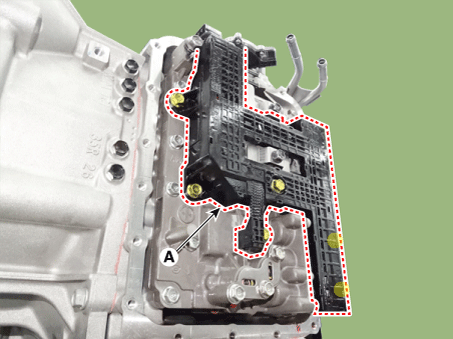

Remove the main harness (A) after removing the bolts.

Tightening torque:

9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

9.

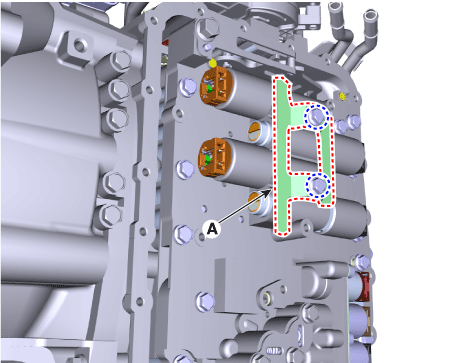

Remove solenoid valve support bracket (A) after loosening the bolts.

Tightening torque:

9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

10.

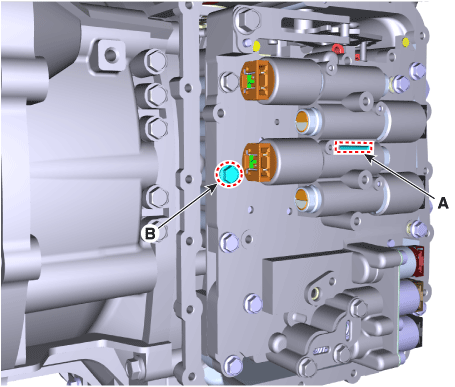

Remove the solenoid valve fixing pin (A) and loosen the valve body mounting bolt (B).

Tightening torque:

9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

11.

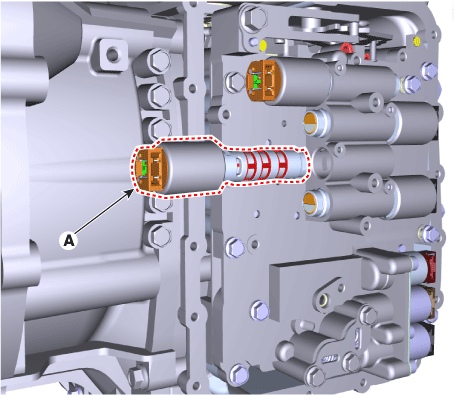

Remove the 35R clutch control solenoid valve (A).

Installation
1.

Install in the reverse order of removal.

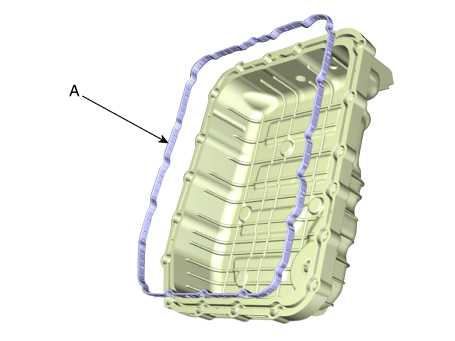

The existing valve body cover gasket (A) must be replaced with a new one. (Do not reuse it.)

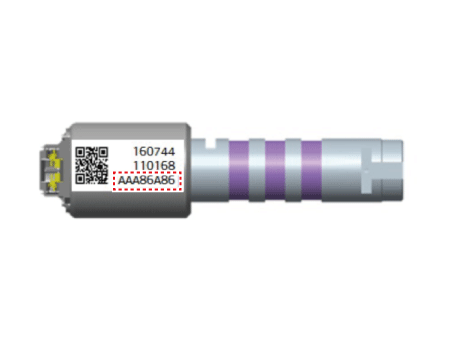

Check the code (oil pressure characteristics value) at the first before installing the solenoid valve.

2.

Perform the procedures below after installing.

(1)

Refill the automatic transaxle with fluid.

(Refer to Hydraulic System - "Fluid")

(2)

Clear the diagnostic trouble codes (DTC) using the KDS. Disconnecting the battery negative terminal will not clear the DTCs. Clear DTCs using the KDS at all times.

(3)

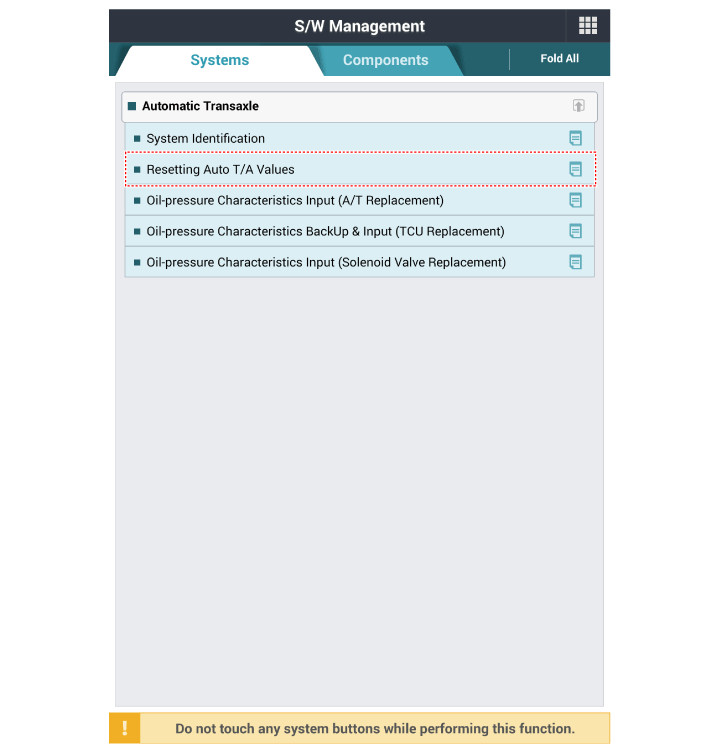

Reset the automatic transaxle adaptive values using the KDS.

(4)

Perform the oil pressure characteristics input procedure using the KDS.

(Refer to Hydraulic System - "Oil pressure characteristics input")

(5)

Check for leakage of coolant or fluid from hose connection during engine start.

(6)

Perform the TCM adaptive values learning procedure.

(Refer to Automatic Transaxle Control System - "Adjustment")

Torque Converter Control Solenoid Valve (T/CON_VFS)
Specifications Specification Control type N/L (Normal Low) Control pressure kpa (kgf/cm², psi) 0 - 519.75 (0 - 5.3, 0 - 75.38)&nbs ...

26 Brake Control Solenoid Valve (26/B_VFS)
Specifications Specification Item Specification Control type N/L (Normal Low) Control pressure (kpa (kgf/cm², ps ...
